Pick your console and stage boxes, then tell us what you run.
Your platform
Pick this first — it sets the consoles and cards you'll see below.
New here? This builds your whole show file.
Answer a few questions about your gear and the builder writes a complete, ready-to-load X32/M32 show file — labeled, routed, done. Free to build.
Console

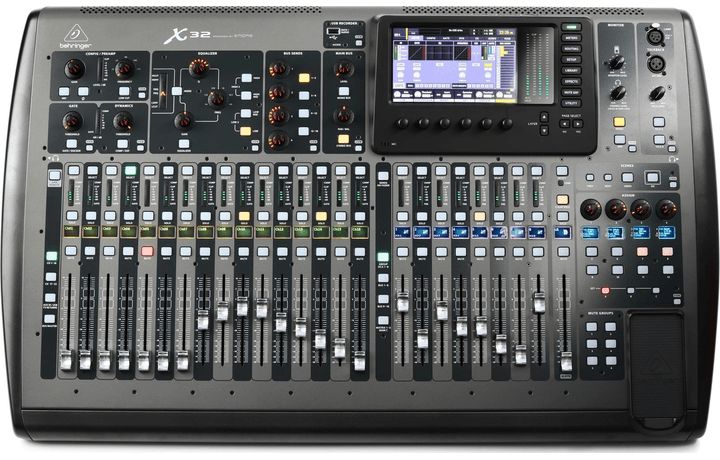

X32 (Full)
32 in · 16 out

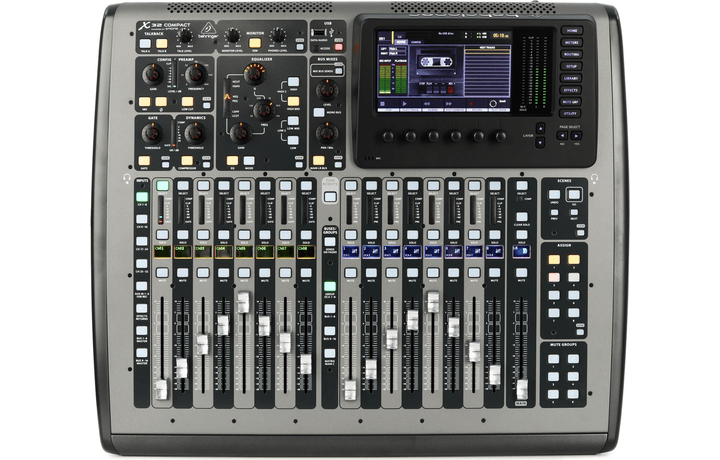

X32 Compact
16 in · 8 out

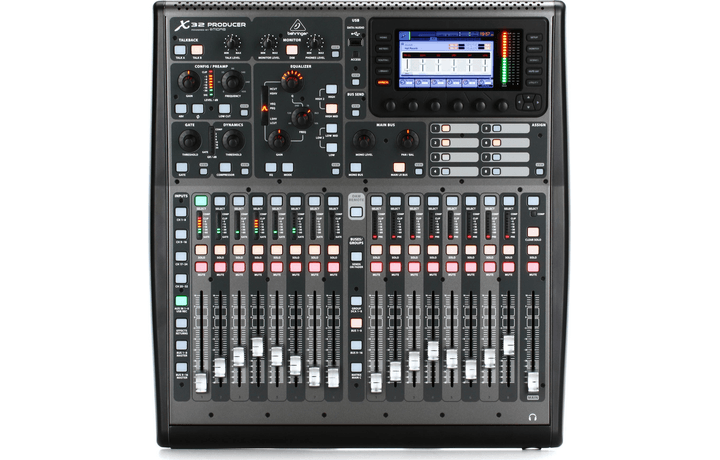

X32 Producer
16 in · 8 out

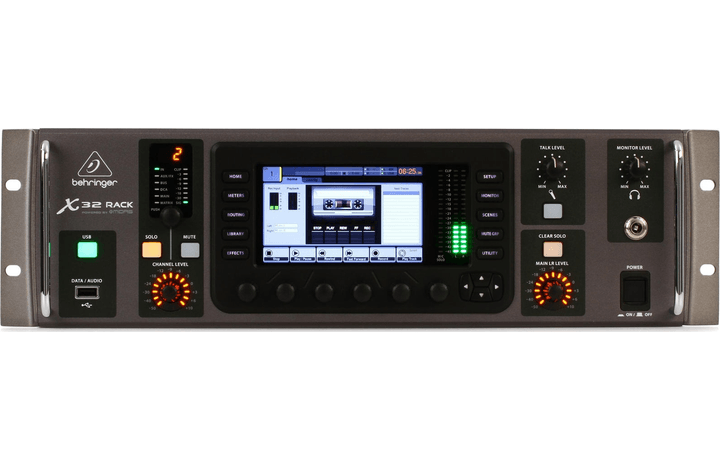

X32 Rack
16 in · 8 out
X32 Core
0 in · 0 out
WING
WING series soon
Coming soon. Drop your email and we'll notify you.
Stage boxes

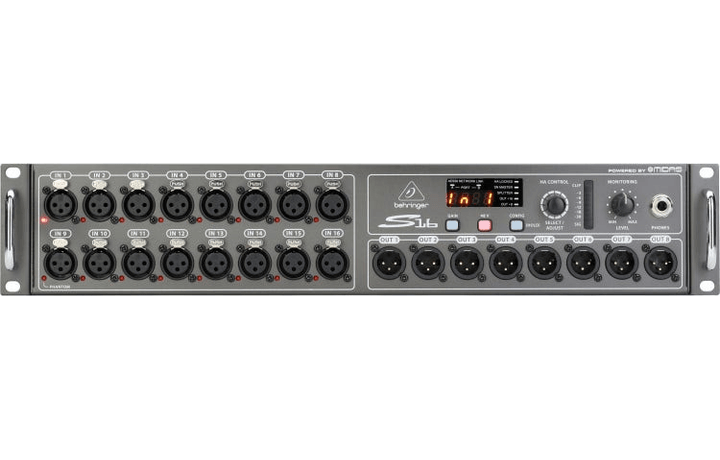

S16 / DL16
16 in · 8 out — same box, two brands. Pick one:

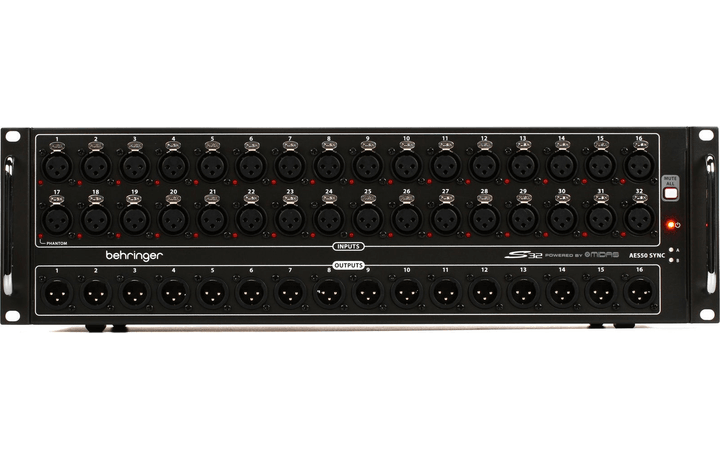

S32 / DL-32
32 in · 16 out — same box, two brands. Pick one:

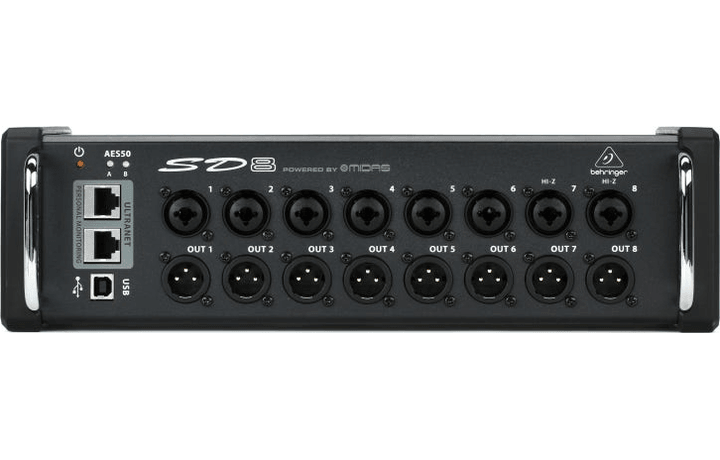

SD8
8 in · 8 out · 8 P16 · click to add

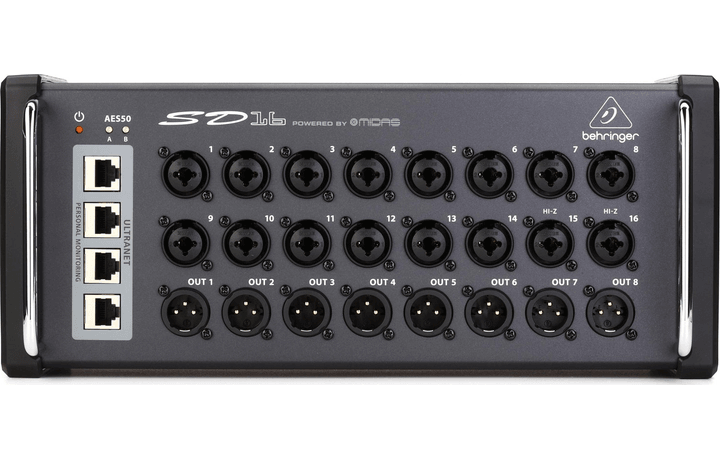

SD16
16 in · 16 out · 16 P16 · click to add
Expansion card (rear slot)
Every X32 has one 32×32 card slot. Most ship with X-USB. The USB cards let the console stream to a computer and multitrack-record; a Dante / MADI card gives a network I/O tab instead.

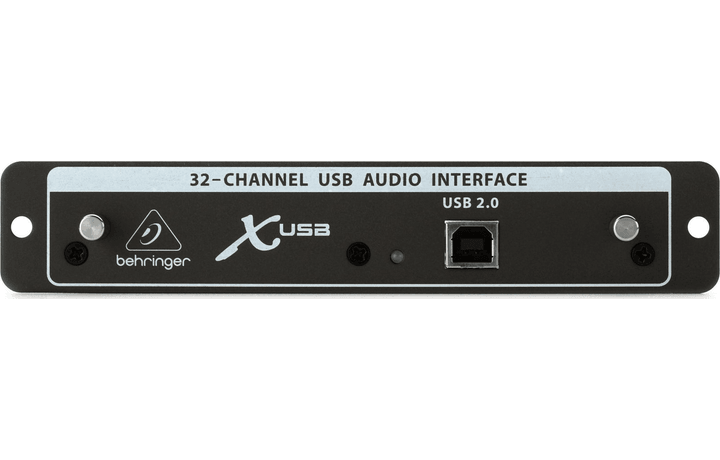

X-USB (default card)
32×32 USB — recording, streaming

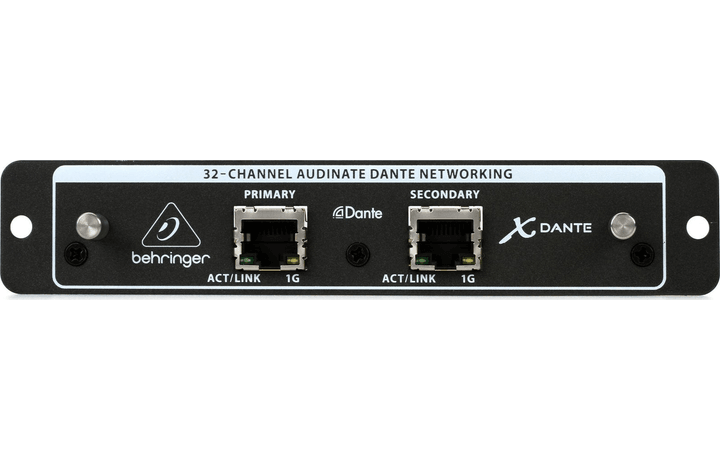

X-DANTE
32×32 Dante network — redundant RJ45

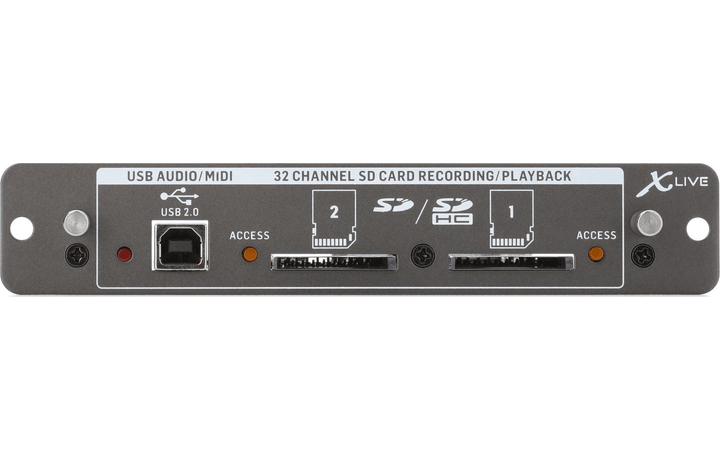

X-LIVE
32-track SD recorder + USB

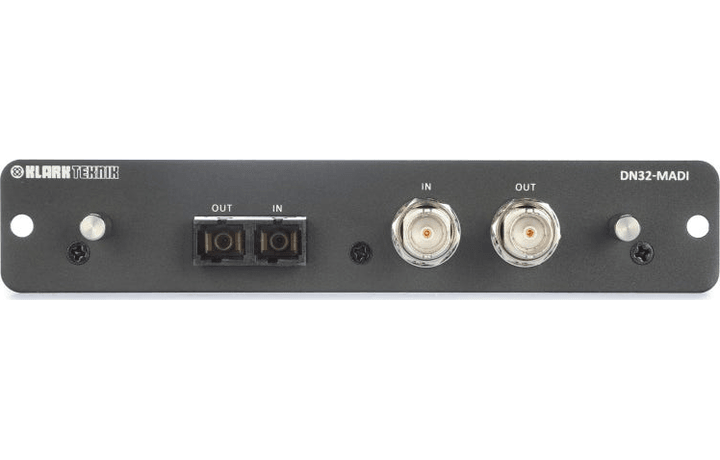

X-MADI
up to 64×64 MADI (optical + coax)

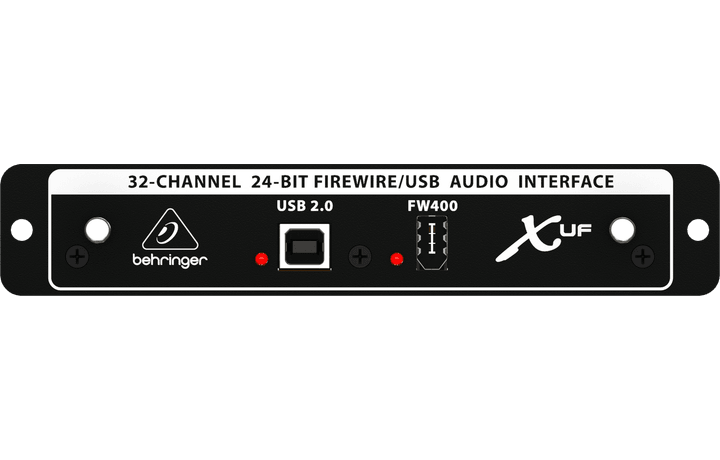

X-UF
32×32 USB + FireWire (legacy)
Monitors — wedges & in-ears
How does your band hear themselves? Wedges and wired/wireless in-ear mixes take mix buses you control from the board; the personal mixers let each musician build their own mix. Pick what you run — setup questions appear below, and the bus budget shows up after the effects rack.

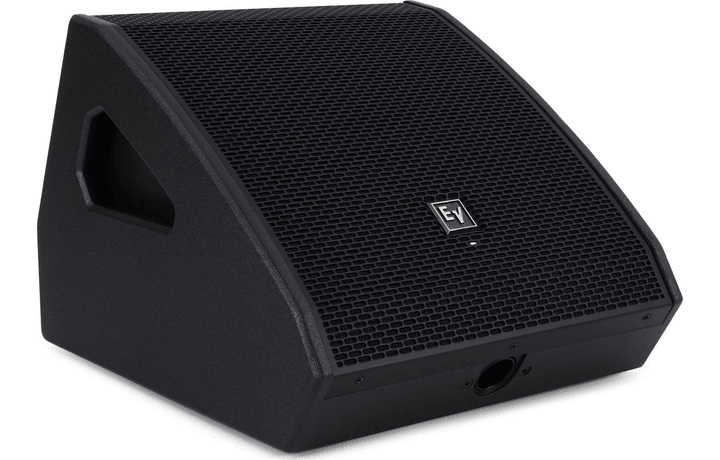

☐ Stage wedges
Mono floor monitors — 1 bus + 1 output each.

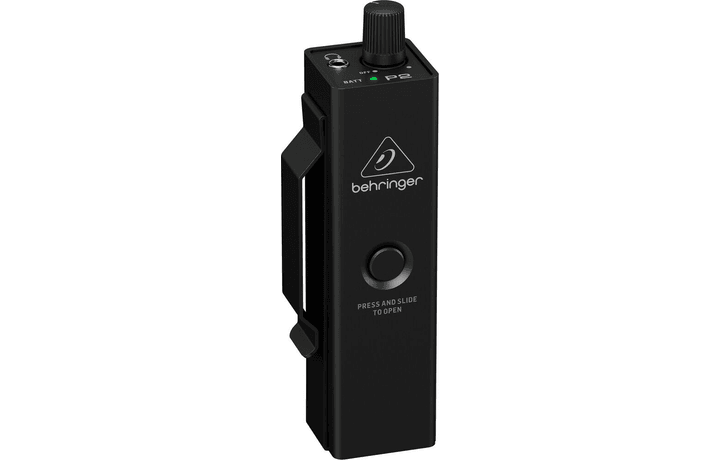

☐ Behringer P2
Mono wired in-ear amp — 1 mix bus each, one headphone out (any mono IEM amp counts here)

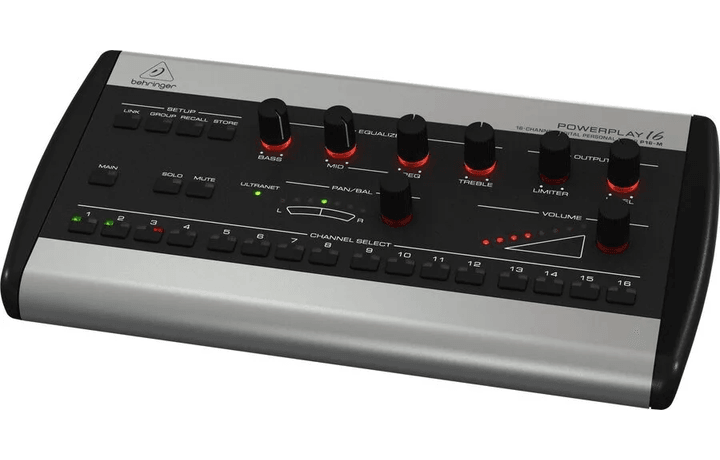

The original Ultranet personal mixer — 16 mono channels (basically discontinued)

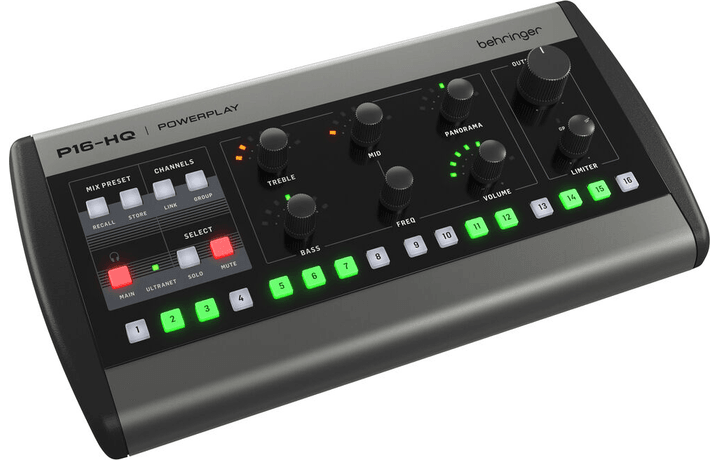

☐ P16-HQ (Recommended)
The new standard personal mixer — 16 channels over X32 Ultranet

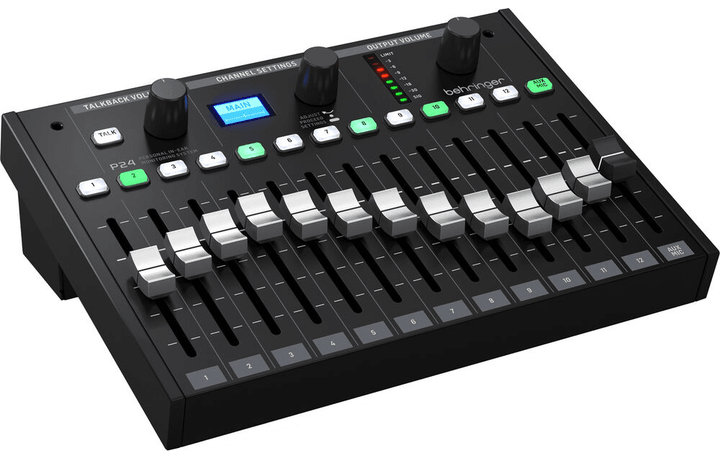

☐ Behringer P24
12 stereo faders over 24 channels — needs the P24 Hub on an X32

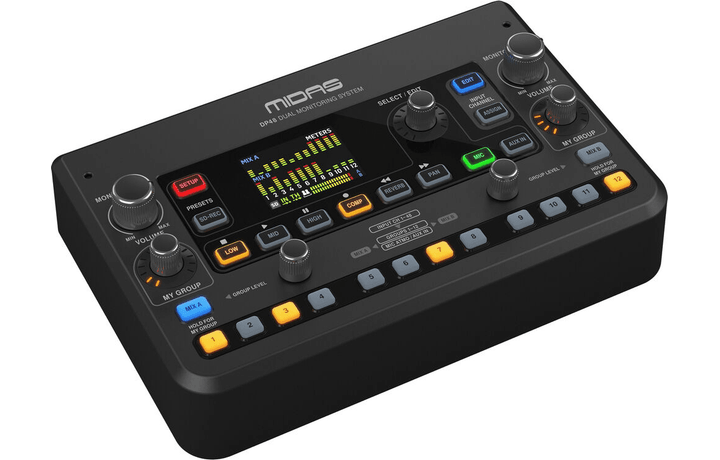

☐ Midas DP48 (Recommended)
The premium personal mixer — 48 channels, connects to the X32 via AES50
Live streaming
Are you streaming your service, and how does the audio leave the console?
Not streaming
No stream mix.
Streaming via software
OBS, ProPresenter… on a computer, fed over USB from the console.
Streaming via hardware
An encoder or video switcher (ATEM, Resi, BoxCaster) fed from two console outputs.
Effects rack
FX rack — 4 of 4 effects onA ready-to-use effects rack — reverbs and delays, returned to your mains, with every instrument pre-sent to the instrument reverb and every vocal to the vocal reverb + delays at unity. Push up DCA 8 ("Effects") and the whole rack comes in; pull it down, it's gone. Each effect uses one mix bus — turn off Tap or Slap to free a bus for more in-ear mixes (Instrument & Vocal reverb are the two you really want).
All 8 engines, all assignable: FX 1–4 default to our rack (swap any of them), FX 5–8 put any console effect on a wedge mix, a matrix, or the main LR — EQs, limiters, compressors…
Mix-bus & output budget
4/16mix buses4 FX · 0 stream · 0 monitors
Music / playback input
Tell us what you plug in — we pick a free jack automatically (shown on each row). You can move it afterwards on the input page where it landed, with the whole jack layout in front of you.
